Product Overview
Roblands latest ecompact spindle moulder, available in single phase & three phase. Optional Long table, heavy duty fence & tenoning table. Spindle molders trim and shape wood. They also increase precision to reduce setup time.
- Optional longer table with support beam
- Optional heavy duty fence for tools up to 250mm (requires optional motor break) providing easier repeatability and better air circulation for dust extraction
- Voltage 230 V single phase / 3 X 230 V / 3 x 400 V
- Motorpower single phase (S6) 2,2Kw / 3hp mono
- Motorpower three phase (S6) 3,7 kW / 5hp
- Diameter & height of table opening 179 x 60 mm
- Maximum tool diameter 180 mm – requires optional motor break
- Spindle length 122 mm
- Spindle stroke 140 mm
- Spindle diameter 30 mm (option 50 mm)
- Spindle rotation speed 3000 / 6000 / 7500 / 10000 RPM
- Dust extraction 100 mm
- Standard Heavy steel table prepared to receive optional feeder
- Electrical connector for optional feeder
- Spindle rotation both clock- and counterclock wise
 |
Standard Cutter Block for most people this cutter block offers the best price/ quality ratio. The blades can be re-sharpened and are easy to replace thanks to a specific toolset, delivered with the machine. |
 |

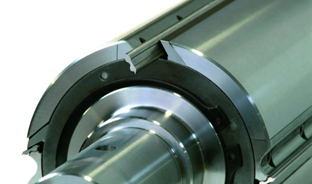

Tersa Cutter Block When processing hard wood types the spiral cutter block has a lower noise level and consumes less energy than a standard cutter block. The blades also typically last longer. |
 |

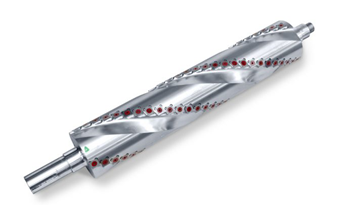

Spiral Cutter Block The machine can be equipped with a TERSA system, to allow for a fast change of the knives. The disposable TERSA blades are available in a wide selection to fit different types of wood. |
